Description
Specification:
| Basic Information | ||
| Supported CPU | – Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor/Intel Celeron processor in the LGA775 package (Go to GIGABYTE’s website for the latest CPU support list.) – L2 cache varies with CPU |
|
| Chipset | North Bridge: Intel G41 Chipset | |
| BIOS | – Use of licensed AWARD BIOS – Support for DualBIOS – PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b – Support for BIOS – Support for Xpress BIOS Rescue |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot 2 x PCI slots |
|
| Graphics Slot | 1 x D-Sub port | |
| Memory | ||
| Type | DDR3, DDR2: | |
| Graphics | ||
| Max Shared Memory | DDR3: 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 1333(O.C.)/1066/800 MHz memory modules DDR2: 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1) Dual channel memory architecture Support for DDR2 1066(O.C.)/800/667 MHz memory modules (Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.) |
|
| Connector & Ports | ||
| USB (s) | USB 2.0 Ports 4 Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) 2 x USB 2.0/1.1 headers 4 x USB 2.0/1.1 ports |
|
| LAN Port (s) | 1 x Atheros AR8151 chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices iTE IT8718F chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive |
|
| Audio | High Definition Audio 1 x front panel audio header 3 x audio jacks (Line In/Line Out/Microphone) |
|
| Internal I/O Ports | I/O Controller : iTE IT8718F 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description :

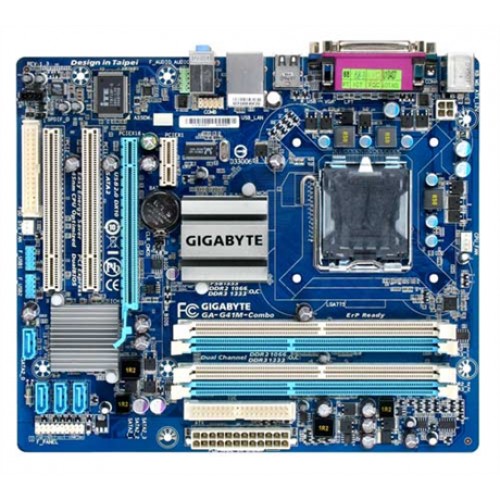

Gigabyte GA-G41M-Combo Motherboard
Gigabyte GA-G41M-Combo Motherboard is to use highly durable components for providing higher sustainability. This motherboard based on the Intel G41 chipset supports the latest Intel 45nm CPUs, creating a powerful multi-media platform which allows users to do more at once. The Intel G41 Chipset used in North Bridge and the Intel ICH7 used South Bridge with Intel X4500 graphics media accelerator which support DX10 and features several unique innovations including more Execution Units for exclusive 3D performance and Intel Clear Video Technology for sharper images and precise color control.
Main Ingredients of the Board
Gigabyte GA-G41M-Combo Motherboard compatible with Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor/Intel Celeron processor in the LGA775 package (Go to GIGABYTE’s website for the latest CPU support list.) and L2 cache varies with CPU.This GA-G41M-Combo Motherboard also supports dual channel DDR43 – 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1), Dual channel memory architecture, Support for DDR3 1333(O.C.)/1066/800 MHz memory modules and DDR2 – 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1), Dual channel memory architecture, Support for DDR2 1066(O.C.)/800/667 MHz memory modules. It has the capability Up to 8 USB 2.0/1.1 ports and 2 x USB 2.0/1.1 headers.Focusing on the graphics, it will support Integrated Intel Graphics Media Accelerator X4500,Patented DualBIOS technology delivering highest level failure protection with high speed Gigabit Ethernet connection. This motherboard Compatible with Window 7 to deliver the best operation experience.This board has few special features such USB, LAN port, Audio, Internal I/O Ports, D-Sub, BIOS and also Micro ATX Form Factor,
